Navigating Port Canaveral
Navigation at Port Canaveral

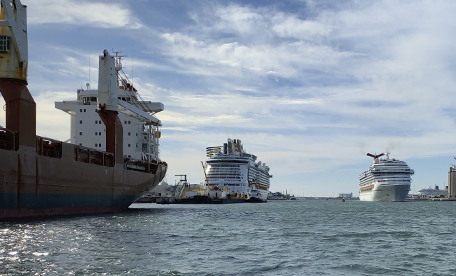

Port Canaveral features a 7-nautical-mile channel with a depth accommodating vessels up to 12.2 meters. Strategically located terminals and berths provide seamless access for cargo and cruise ships, ensuring efficient navigation and operations.
Location
The Port's location is given as LAT 28°24.6N and LONG 80°36.5W.
Channel
Channel length is 7 nautical miles (13 km).
Main Channel Mean Low Water Levels
- Entrance Channel: -14 meters (-46 feet)
- Main Channel: -13.4 meters (-44 feet)
- Central Turning Basin: -13.1 meters (-43 feet)
- West Turning Basin: -13.1 meters (-43 feet)
Channel Depths and Restrictions
The Canaveral Port Authority provides depths in the channel of -13.4 meters (-44 feet).
- Maximum Draft in Channel: -12.2 meters (-40 feet)
- Minimum Under-keel Clearance for Vessels in Channel: 1 meter (3.3 feet)
NOTE: For the most up-to-date restrictions, contact the Harbormaster's office directly.
Tide Restrictions
Vessels drawing 11.6 meters (38 feet) or less: Transit anytime.
Vessels drawing more than 11.6 meters (38 feet) up to 12.2 meters (40 feet) and any cargo vessel proceeding to the West Basin will be advised by the Harbormaster and Canaveral Pilots of the time of boarding by a pilot for transit with consideration given to the stage of the tide.
NOTE: Vessels drawing more than 11.6 meters (38 feet) draft require three tugboats and a 48-hour notice to ensure there are no delays.
Swing or Turning Basin Radius
- Central Turning Basin: 2000 feet x 1400 feet (609.6 meters x 426.7 meters)
- West Turning Basin: 2000 feet x 1400 feet (609.6 meters x 426.7 meters)
North Cargo Berths (NCB)
| Berth | Dock Length | Maximum Draft | ||
|---|---|---|---|---|
| NCB 1 | 196.6 m | 645' | 11.6 m | 38'06" |
| NCB 2 | 196.6 m | 645' | 12 m | 39'06" |
| NCB 3/41 | 532.5 m | 1747' | 13.1 m | 43'00" |
| NCB 5/6 | 570.6 m | 1872' | 12.2 m | 40'00" |
| NCB 8 | 310.9 m | 1020' | 10.7 m | 35'00" |
1-Under Construction
North Cruise Terminals
| Terminal | Dock Length | Maximum Draft | ||
|---|---|---|---|---|
| CT 5 | 208.8 m | 685' | 10.2 m | 33'06" |
| CT 6 | 211.2 m | 693' | 10.2 m | 33'06" |
| CT 8 | 240.2 m | 788' | 9.75 m | 32'00" |
| CT 10 | 248.1 m | 814' | 10.4 m | 34'00" |
South Cargo Berths (SCB)
| Berth | Dock Length | Maximum Draft | ||
|---|---|---|---|---|
| SCB 1 | 492.2 m | 1615' | 9.75 m | 32'00" |
| SCB 22 | 12 m | 39'06" | ||
| SCB 3 | 12 m | 39'06" | ||
| SCB 4 | 125.6 m | 412' | 12.2 m | 40'00" |
2-Max Draft: Valid up until 975 ft. mark; Max Beam: 106’ east of 800ft. mark
South Cruise Terminals
| Terminal | Dock Length | Maximum Draft | ||
|---|---|---|---|---|
| CT 1 | 431.9 m | 1417' | 11.1 m | 36'06" |
| CT 2 | 212.4 m | 697' | 10 m | 33'00" |
| CT 3 | 402 m | 1319' | 10 m | 33'00" |
NOTE: Each vessel will be reviewed on a case-by-case basis by the Harbormaster's office and the Pilots. Minimum under-keel clearance for vessels at all berths is always 0.1524 meters (6 inches). It is the responsibility of the vessel's Master to ensure that this requirement is met.
Further restrictions may be imposed due to current water depths and vessel characteristics. To receive updates of Port Canaveral Operational Guidelines, Surge Warning Letter for Moored Vessels, Pilot Rates, or other information, contact the Harbormaster's office.
